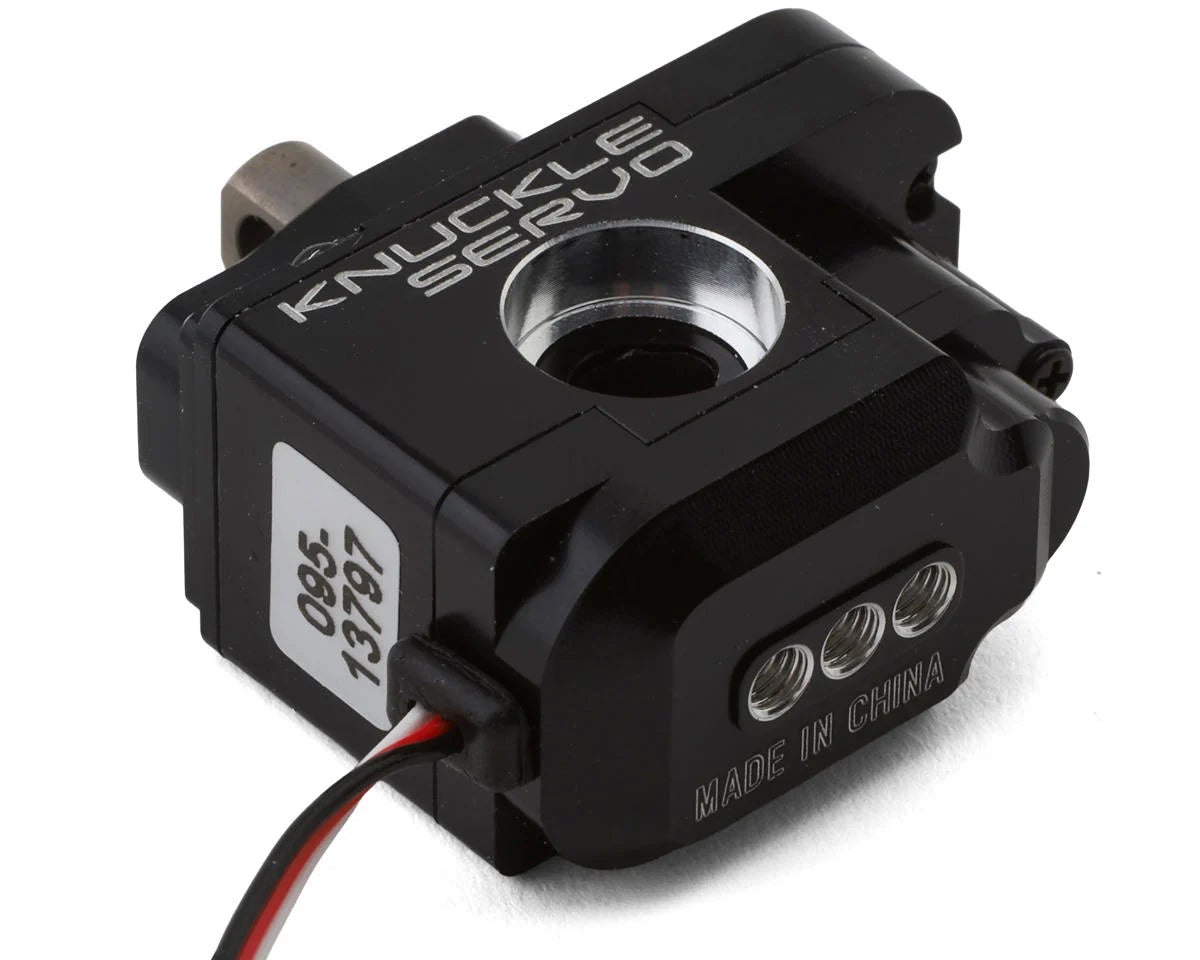

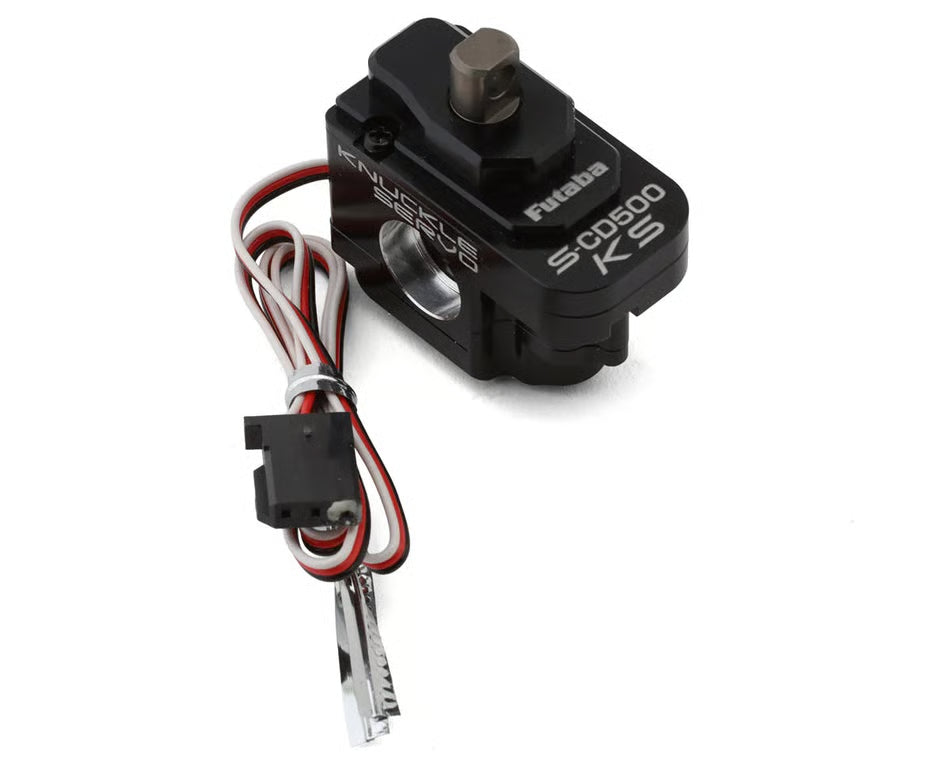

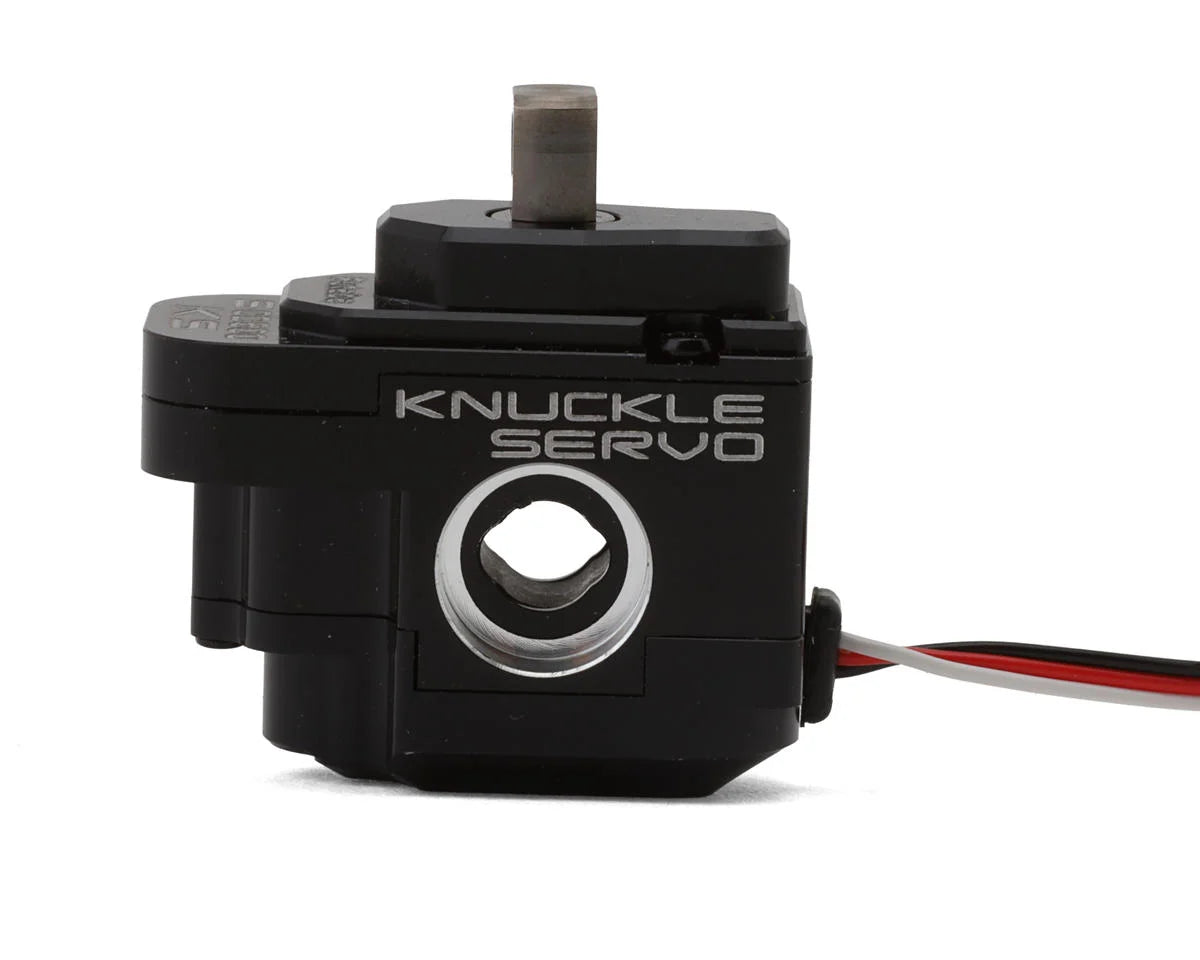

Futaba S-CD500KS Coreless Knuckle Steering Servo for 1/10 RC Drift Cars (FUT01102424-3)

Upgrade your RC drift car's steering system with the Futaba S-CD500KS Coreless Knuckle Servo, designed specifically for 1/10-scale electric 2WD RC drift cars. This innovative steering servo eliminates conventional tie rods, helping reduce bump steer while enabling advanced steering geometry adjustments through compatible Futaba radio systems.

Featuring support for Futaba's Ultra Response (UR) and Super Response (SR) modes, the S-CD500KS offers smooth steering operation at large steering angles. Compatible transmitters allow wireless Ackermann adjustments and steering toe angle mixing for greater control over your drift car's steering characteristics.

Features:

• Genuine Futaba S-CD500KS coreless knuckle steering servo
• Designed for 1/10-scale electric 2WD RC drift cars
• Tie-rod-free steering design helps eliminate bump steer
• Supports Futaba UR and SR response modes
• Wireless Ackermann adjustment with compatible transmitters
• Steering toe angle mixing through compatible transmitter controls
• Lightweight, compact design for specialized drift steering setups

Specifications:

• Brand: Futaba
• Model: S-CD500KS
• Part Number: FUT01102424-3
• Servo Type: Coreless knuckle steering servo
• Dimensions: 32.0 × 16.6 × 27.6 mm
• Weight: 20.7 g
• Speed: 0.130 sec/60° at 6.0V; 0.165 sec/60° at 4.8V
• Torque: 2.4 kgf·cm at 6.0V; 2.0 kgf·cm at 4.8V
• Rated Voltage: 4.8–6.0V
• Lead Wire Length: 330 mm

Compatibility Requirements:

• Two S-CD500KS servos are required per vehicle.
• Requires a compatible Futaba GYD560 drift gyro with firmware version 2.0 or later.
• Compatible transmitters include the Futaba T10PX, T10PXR, T10XCR, and T6PV with the required firmware updates.
• The transmitter must support mixing two steering servos.
• Set the ESC's BEC output to 6.0V. Using 7.4V may damage the servos.

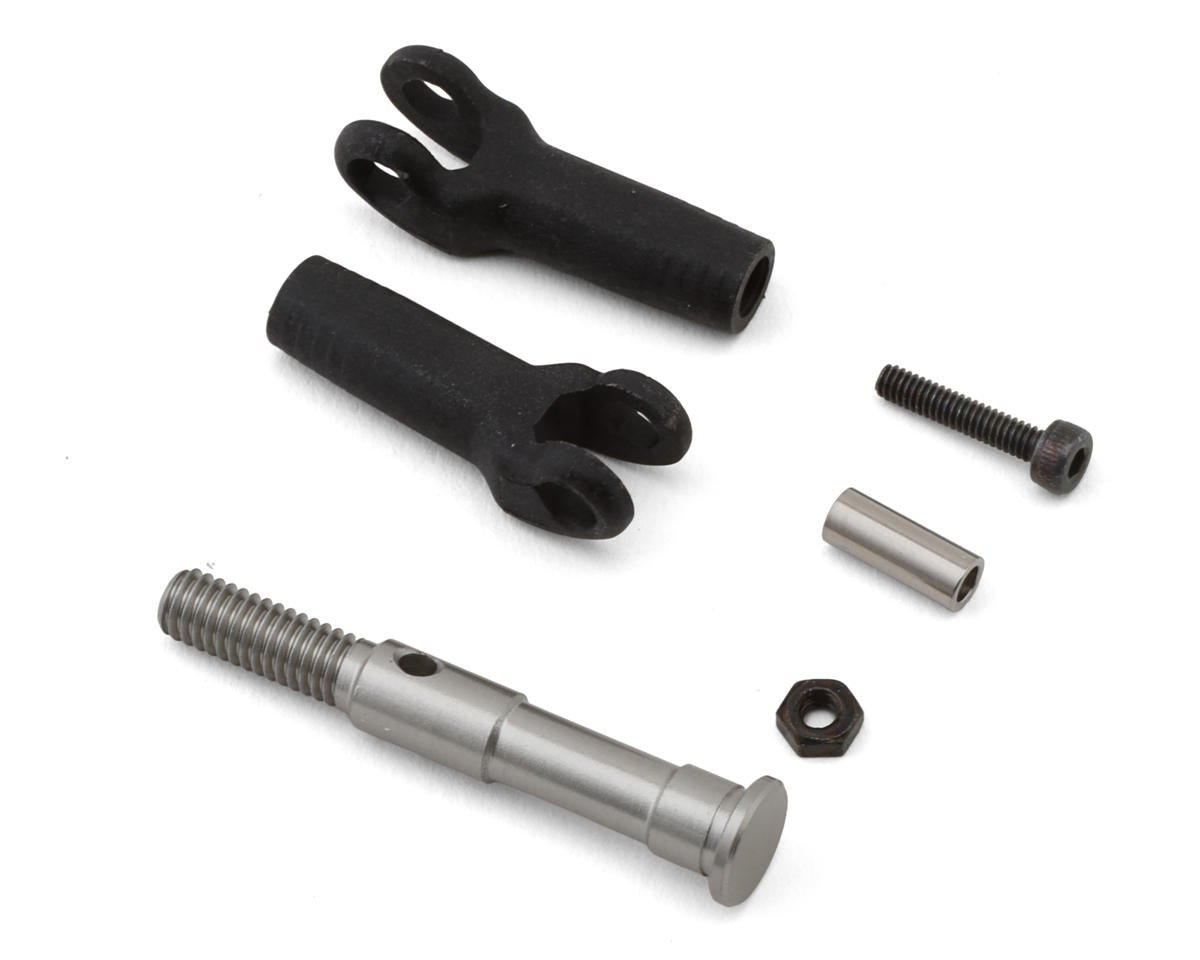

Package Contents (Single Servo):

• 1 × Futaba S-CD500KS knuckle servo
• 1 × Axle shaft
• 2 × Upper rod ends, including one spare
• 1 × Spacer
• 1 × M2 nut
• 1 × M2 screw

Important: This listing includes one servo, not a complete two-servo set. Wheel hubs, hub pins, and bearings are not included.

Take your RC drift setup further with the Futaba S-CD500KS, engineered for precise steering adjustments and advanced dual-servo drift configurations.
