SHIBATA DR – Hyper Spring Set 1.2mm 7 coils

Hyper Spring Set 1.2mm 7 coils

SHIBATA Hyper Spring Set.

The ends of both the main spring and helper spring are finished, and we paid particular attention to how well they sit on the adjuster ring and spring holder.
By winding them on both sides, the spring operating range in response to the damper input is smoothed, bringing out the best in the spring's performance.

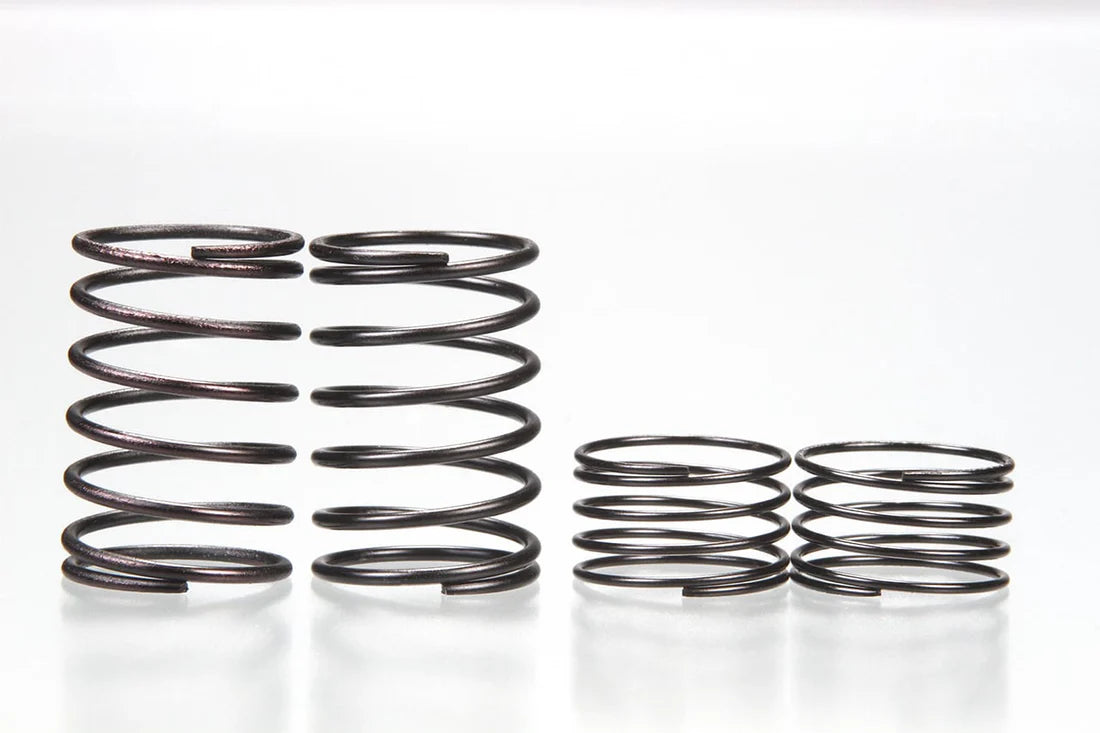

Spring specifications
Main spring: length 25 mm, wire diameter 1.2mm, 7 coils left and right windings
Helper spring: length 9.5 mm, wire diameter 0.8mm, 5 coils left and right windings

Use the helper spring sheet (R31S114) for SHIBATA Hyper Spring
