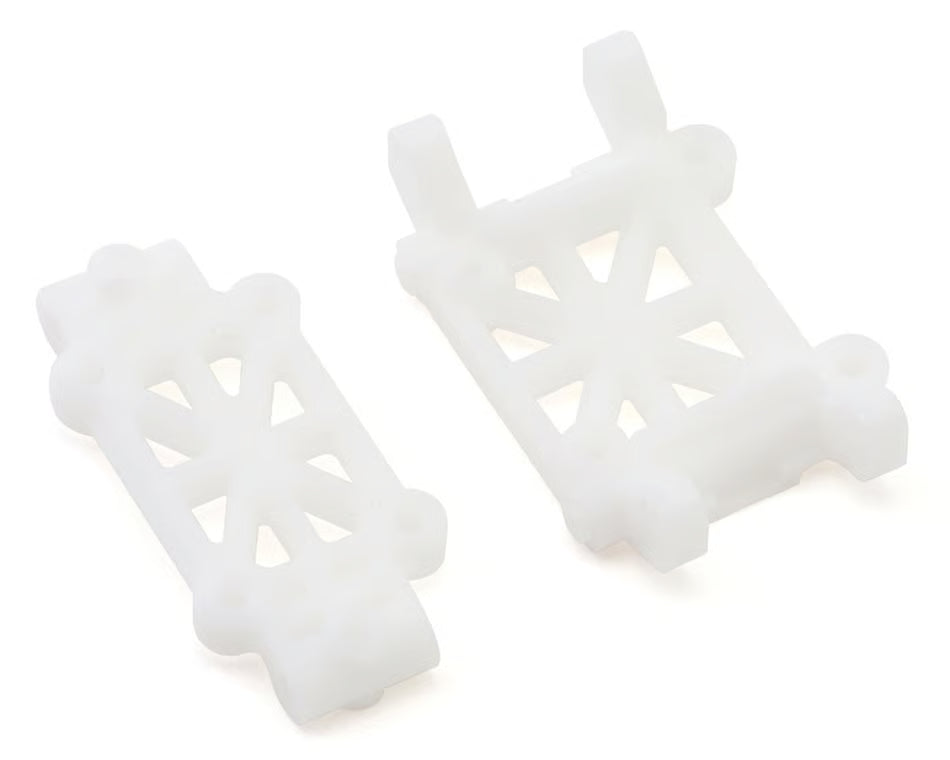

Topline Front Upper & Lower Suspension Mount Set for ReveD RDX (White)

Reve D RDX Front Upper & Lower Suspension Mount Set

Upgrade the front-end performance of your Reve D RDX RC drift car with the Topline Reve D RDX Front Upper and Lower Suspension Mount Set. Designed specifically for the RDX drift chassis, these precision-molded Delrin suspension mounts provide a rigid and precise connection between the suspension components and chassis while giving drivers additional tuning options for front-end geometry and handling.

The optional suspension mount set is ideal for RC drift drivers looking to fine-tune steering response, front traction, suspension geometry, and chassis balance. With adjustable mounting positions and a reversible lower mount design, this set provides additional setup flexibility for both competition and high-performance RDX builds.

About the Reve D RDX Front Suspension Mounts

Precision Delrin Construction

The Topline Reve D RDX suspension mounts are manufactured from precision-molded Delrin, providing a combination of rigidity, durability, dimensional stability, and lightweight performance.

The increased rigidity of the mounts helps create a more stable connection between the RDX suspension system and chassis, allowing suspension inputs to remain consistent during aggressive steering and drifting.

These RDX front suspension mounts are designed as a direct tuning upgrade for drivers who want greater control over their front-end setup without adding unnecessary weight.

Adjustable Front Suspension Geometry

The upper suspension mount features suspension pin mounting points positioned 1mm outward compared to the standard position. This change allows drivers to alter the front suspension geometry and can help fine-tune steering characteristics and front-end balance.

Two selectable mounting hole heights are also incorporated into the upper mount, providing additional adjustment for suspension setup and handling characteristics.

The lower suspension mount features a contact surface that is 1mm thinner, optimizing the fit between the mount and chassis. The lower mount can also be installed upside down to lower the suspension pin height by 3mm compared to the front-side installation position.

These adjustment options allow the RDX front suspension to be tuned for different driving styles, track conditions, and overall chassis setups.

Key Features

• Designed specifically for the Reve D RDX RC drift chassis

• Optional front suspension upgrade

• Includes upper and lower front suspension mounts

• Precision-molded Delrin construction

• Increased front-end rigidity and suspension stability

• Upper suspension pin position moved 1mm outward

• Two selectable upper suspension mounting hole heights

• Lower mount contact surface is 1mm thinner

• Reversible lower mount design

• Lower mount can reduce suspension pin height by 3mm

• Provides additional front suspension geometry adjustment

• Helps fine-tune steering response and front traction

• Lightweight construction for high-performance RC drift setups

• Ideal for RDX tuning, competitive RC drifting, and advanced chassis setup

Fine-Tune Your Reve D RDX

The Topline Reve D RDX Front Upper & Lower Suspension Mount Set is an excellent tuning option for drivers looking to extract more performance and adjustability from their RDX drift chassis. With precision Delrin construction and multiple suspension geometry adjustments, these mounts give RC drift enthusiasts additional control over front-end setup, steering characteristics, and chassis balance.
